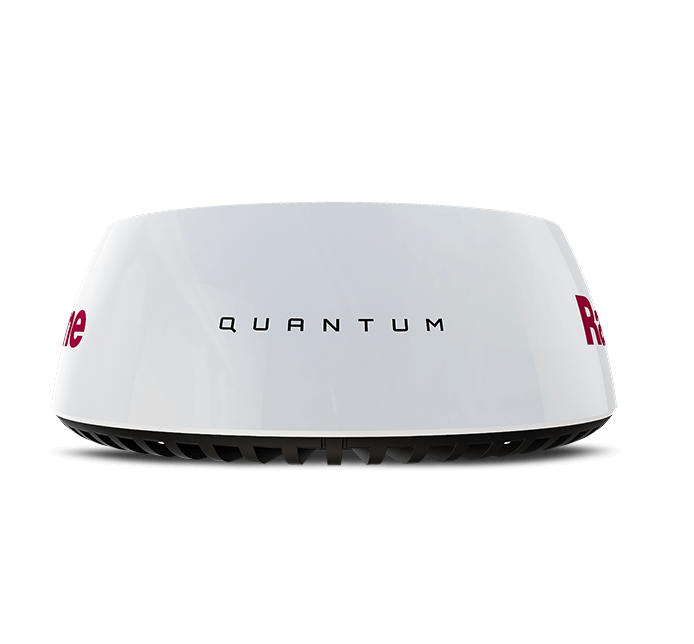

Quantum Q24C Radome w/Wi-Fi and Ethernet. 10M Power Cable included
Raymarine Quantum™ Wireless CHIRP Radar
Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
| |
GENERAL SPECIFICATIONS |
| Input Voltage |
12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking |
Wi-Fi or wired Ethernet (RayNet) |
| Antenna Type |
Patch Array |
| Power Consumption |
Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range |
Scales From 1/16 to 24 nautical miles |
| Transmit Frequency |
9354 to 9446 MHz |
| Peak Power Output |
20W |
| Duplexer |
Circulator |
| Pulse Widths (3 dB) |
40 ns to 14.7 μs |
| CHIRP Lengths |
400 ns to 20 μs |
| CHIRP Bandwidth |
Up to 32 MHz |
| IF Bandwidth |
26 MHz |
| Noise |
Less than 4 dB |
| Max. Range Scale |
from 1/16 to 24 nautical miles |
| Beamwidth (nominal) |
4.9º horizontal and 20º vertical |
| Polarisation |
Horizontal |
| Waterproofing |
IPX6 |
| Weight |
5.6 kg (12.3 lb) |
