Features:
CURV Cone Technology - Incorporates CURV woven fiber composite, which is heat pressed to form a lighter and stronger cone that delivers greater sound definition, higher output, and greater resistance to the marine environment.
Fully Sealed Crossover Components – Provides full protection from the harsh marine environment, whilst delivering improved frequency response at the crossover point for a detailed audio spectrum and new level of acoustic performance.
Sports Styled Grille – A structurally ridged True-Marine™ design provides the ultimate cone protection, with great looks to complement any vessel. Engineered for both internal or external installation.
Silk Dome Tweeter - Creates a smooth upper frequency response with increased efficiency, producing crisp sound for unrivalled enjoyment.
Large Diameter Voice Coil – Delivering an increase in real power and efficiency, the voice coil provides a signature sound exclusive to the 7.7” FUSION Speakers.

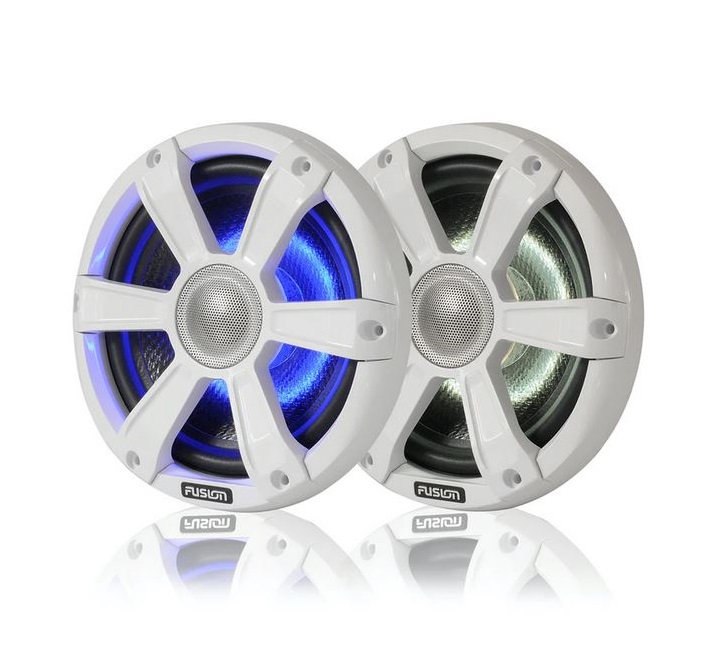

Dual-Color Diffused LED Lighting Option* - Select either a Striking Blue or Sparkling White LED illumination for your speaker cone to add instant appeal that will energize your boating experience.
*Color is determined by wiring polarity at installation.
Product Specifications
Product Code |
SG-FL77SPW |
Configuration |
Coaxial |
RMS Power Rating (Watts) |
100 |
Peak Power (Watts) |
280 |
Efficiency (1W/1M) |
91db |
Frequency Response |
60Hz-22KHz |
Impedance |
4 Ohms |
Tweeter Type |
Silk Dome |
Cone Material |
CURV |
Voice Coil Diameter |
1.5” |
LED Color Options |
White and blue |
Mounting Dimensions
Mounting Diameter Clearance |
156mm (6-1/8") |
Mounting Depth Clearance |
85.5mm (3-3/8") |
