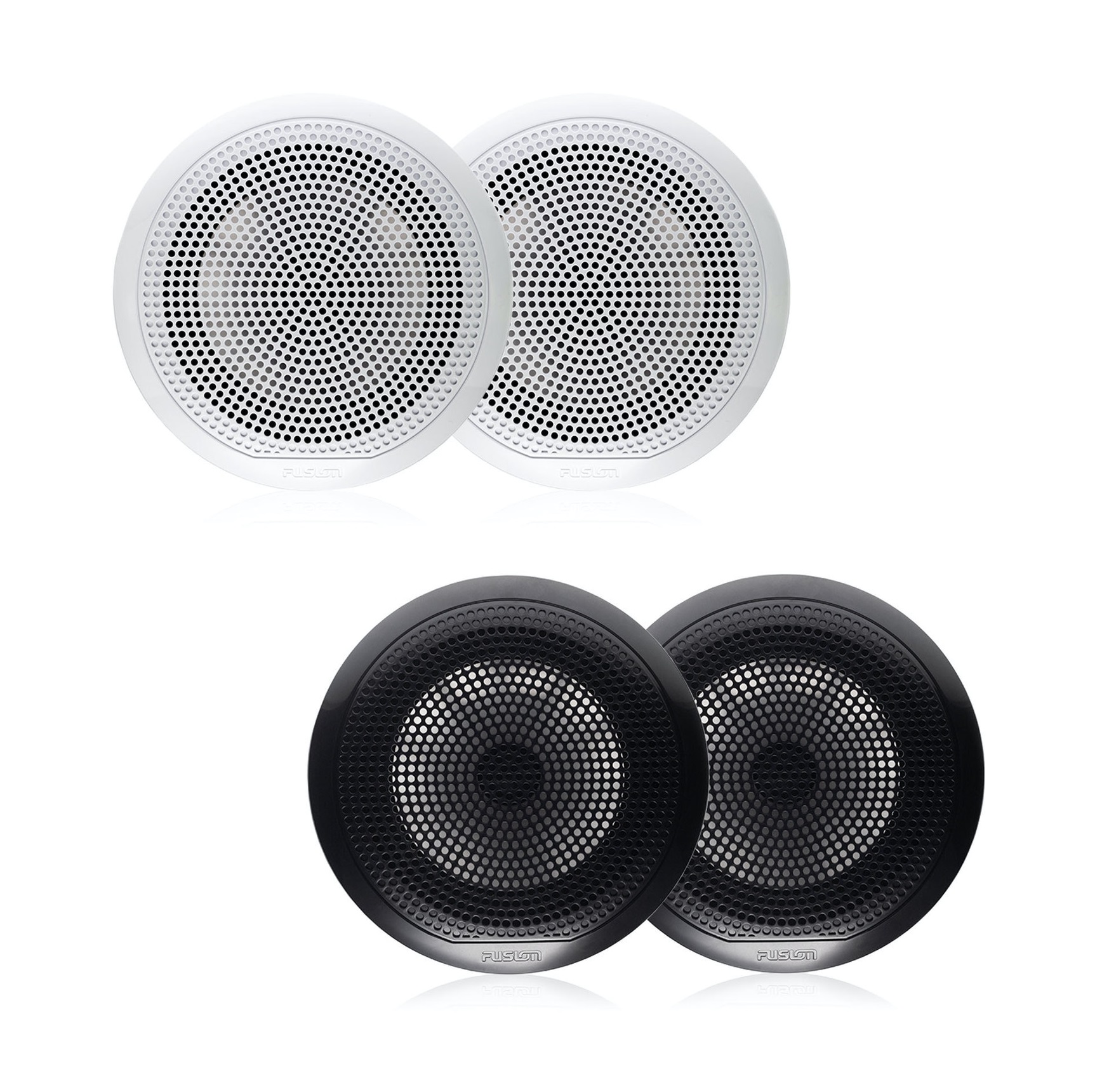

Shallow Basket Design
Making the EL Series speakers ideal for installation where mounting depth is limited, the shallow basket design ensures your speakers will fit in thinner wall cavities than traditional speakers.
Engineered for the Marine Environment
Perfect for both indoor and outdoor installation, the EL Series are designed to withstand the elements in harsh outdoor and marine environments. Meeting industry standards for UV and salt fog protection, along with an IP65 weatherproof rating, your speakers are protected from sun, salt, water and dust damage from the front face when correctly mounted - letting you can enjoy peace of mind that your speakers will last the test of time on board.
Designed To Comply With ISO12216
The EL Series have passed stringent pressure and watertightness tests in accordance to ISO12216 (D1.1 for Areas II, III and IV). This is critically important as it ensures the boat builders and consumers alike are installing genuinely safe speakers on board their vessel. By achieving ISO12216 compliance is a recognition of the product's superior design and build quality.
Product Specifications
| Speaker Size |
6.5" |
| Peak Power |
80W |
| Efficiency (1W/1M) |
88dB |
| Frequency Response |
45Hz - 16kHz |
| Impedance |
4 Ohms |
| Cone Material |
Polypropylene |
| Mounting Diameter Clearance |
130mm (5-1.8") |
| Mounting Depth Clearance |
43mm (1-11/16") |
| Speaker Dimensions: Length x Height x Depth |
Ø 176mm x 57.5mm [Ø 6-15/16" x 2-1/4"] |
| Warranty |
1 year |
