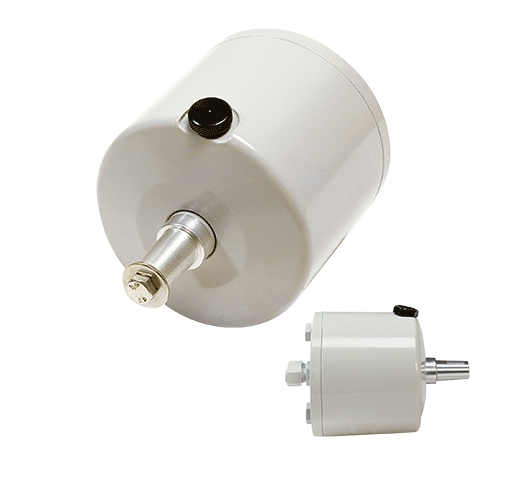

New compact series Vetus Hydraulic Steering Helm Pump, suitable for use with Vetus Cylinders MTC52 - 175. Simple four bolt rear face fixing and industry standard 3/4" taper shaft. Can be mounted and operated in any angle from horizontal to vertical.

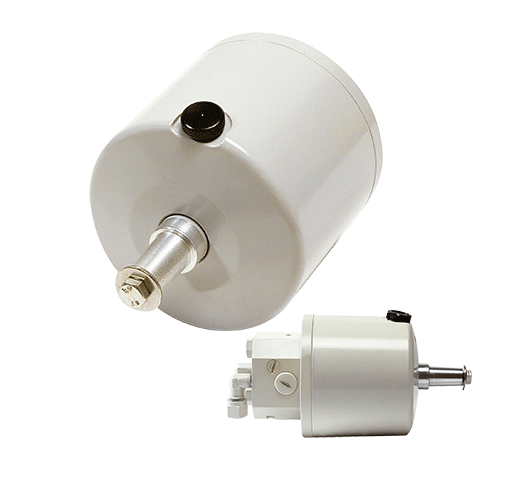

Features built-in non-return valve and pressure relief valve on HTP4210R.
Vetus HTP pumps are supplied as standard:
Colours 'Off White' (RAL9002)
With 10mm compression fittings for the pressure lines and a balance pipe.
With fixing studs, nuts and washers.
With one vented and one un-vented filler plug.
Technical Specification
Capacity: 42,0 cm³/rev.
Number of pistons: 7
Weight: 3.3Kg / 4.1Kg (HTP4210R)
