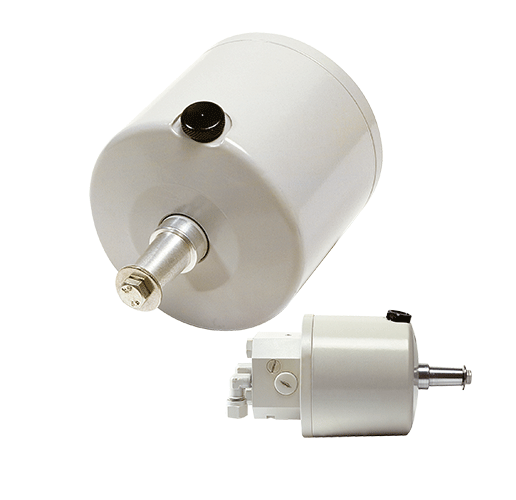

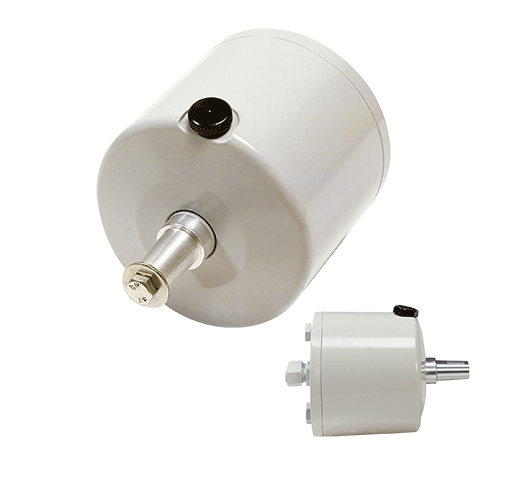

New compact series Vetus Hydraulic Steering Helm Pump, suitable for use with Vetus Cylinders MTC30 - 72. Simple four bolt rear face fixing and industry standard 3/4" taper shaft. Can be mounted and operated in any angle from horizontal to vertical.
Features built-in non-return valve and pressure relief valve on the HTP2020R.
Vetus HTP pumps are supplied as standard:
Colours 'Off White' (RAL9002)
With 10mm compression fittings for the pressure lines and a balance pipe.
With fixing studs, nuts and washers.
With one vented and one un-vented filler plug.
Technical Specification
Capacity: 19,7 cm³/rev.
Number of pistons: 5
Weight: 3.3Kg / 4.1kg (HTP2010R)
