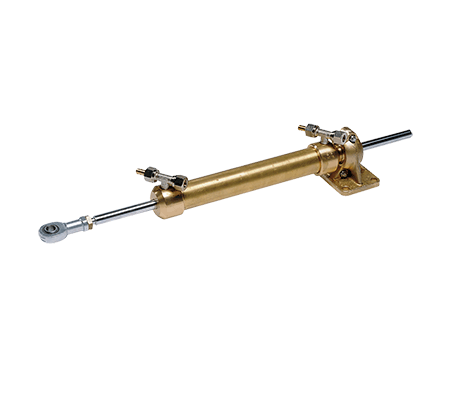

High quality brass bodied hydraulic cylinder for mid sized yachts and work boats. Supplied with zinc plated rod end (stainless steel upgrade available) and compression fittings with bleed nipples.
Wheel Turns (lock to lock with HTP pump models)
HTP20: 7.5
HTP30: 4.9
HTP42: 3.5
Dimensions
Stroke: 225mm
Volume: 146cm³
Length of tiller arm: 196mm
Rod End Thread: M12
Weight: 3.8Kg
Technical details:
Max. Torque: 706 Nm (72 kgm) (521 ft.lbs)
Pressure 5492 kPa (56kg/cm²) (797lbs/sq.inch).
Connections: G¼ female pipe thread.
Total rudder angle: 70° (2 x 35°).
