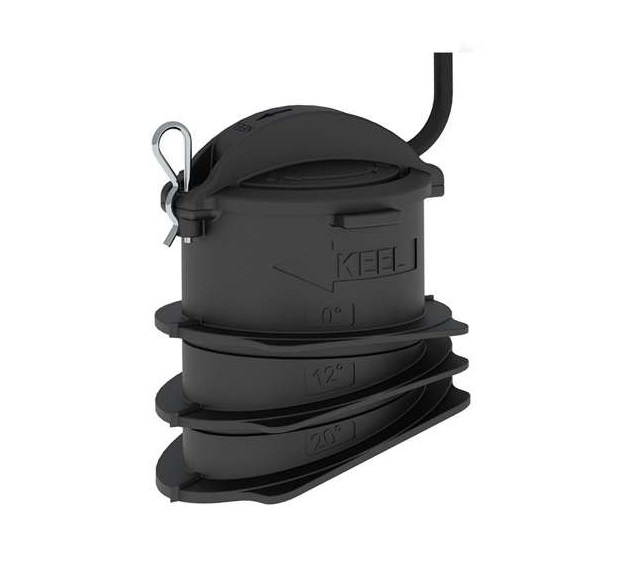

The CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP operation centered on 200kHz. The CPT-S in-hull directly connects to Element S and connects to Axiom RV, Axiom Pro, and Element HV using the A80490 or A80559 adapters, respectively. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.
CPT-S SPECIFICATIONS
GENERAL FEATURES
Sonar Type: CHIRP
Frequency: High CHIRP 170 – 230 kHz
Hull compatibility: Solid, non-cored fiberglass hull
Deadrise Adjustments: 0°, 12° or 20°
Depth Range: Up to 600 feetCone Angle25°
MFD COMPATIBILITY
Elemen tDirect connection to Element S. Compatible with Element HV using the A80559 adaptor
Axiom, Axiom+Direct connection to Axiom 7 DV. Use the A80490 adaptor for connection to Axiom RV and Axiom+ RV
Axiom ProUse the A80490 adaptor for connection to Axiom Pro S, Axiom Pro RVX and the RVX1000
Other/legacyDirect connection to DownVision variants of aSeries, eS Series, and CP100 Sonar modules
