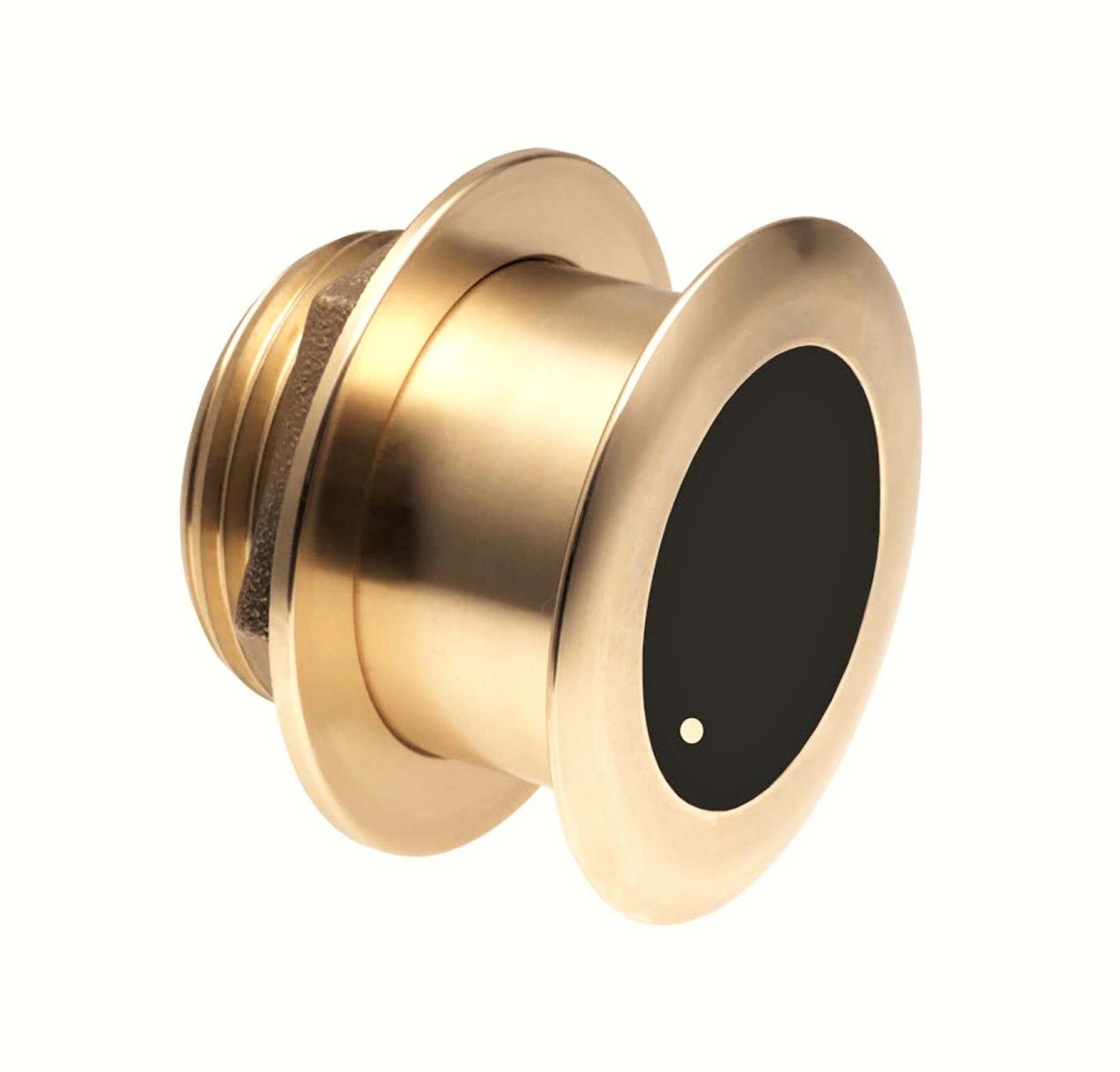

Raymarine B175M, Bronze Low Profile Transducer, 0 deg Tilt, 1KW
Chirp transducers enable bottom detection down to 3,000m (10,000) with 5 to 10 times greater detail and resolution so precise its possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 50 kHz of total bandwidth in just one installation, saving customers time and money.
A tilted element model in the Chirp Thru-Hull product line, the B175M Chirps across the following bandwidth:
M Model - Medium Frequency 85-135 kHz
The B175 is available in 0, 12, and 20 tilted versions.
Features
- Medium CHIRPS from 85 kHz to 135 kHz, 24 to 16 beamwidth
- 20 tilted versions
- 50 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
- Depth & fast-response water-temperature sensor
- Bronze transducer housing
- Boat Size: Up to 11 m (36)
- Hull Type: Fiberglass or wood
Specifications
- Hull Deadrise: Up to 28
- Acoustic Window: Urethane
- Weight: 2.7 kg (6 lb)
